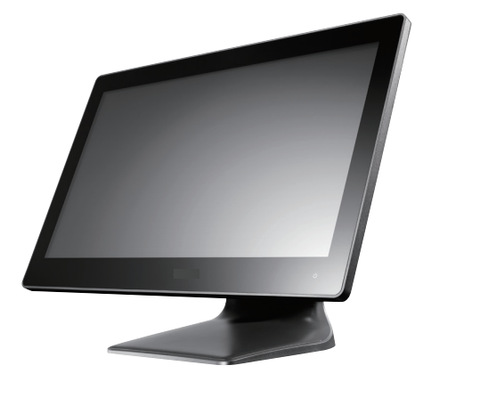

Apex Windows Terminal
apex15-bAll in One Windows POS with Built-in MSR
Linga rOS Windows-based Terminal features modern and contemporary styling, powerful performance, superior touch display, multiple I/O interfaces and flexible installation.
Simply built for today’s retail and hospitality businesses.
Optional 9.7 Customer Display
Specifications:
CPU: Intel®Celeron®J1900 (2.0 GHz) Quad-Core Processor, Fanless
STORAGE: 128GB SSD
MEMORY: 8GB RAM
PORTS: 6x USB (Rear 2, Back 4, USB 2.0 x 6)
6x Serial (COM 1 with 5V/12V Power Output on 9 Pins, BIOS)
(COM2~3 RJ-45 , Full Signal)
(COM5 Reserved for Cash Drawer Port)
(COM4 RJ-11, Only TX/RX, 12V Power Output, Reserved for 2x20 Customer Display)
(COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR)
1x LAN Gigabit Ethernet, RJ-45
Audio Line Out
Power DC-IN
MSR: 3 tracks, no EMV
OS: Window 10 IoT
LCD PANEL: TFT LED Backlight 15″ and 19.5" Widescreen
RESOLUTION: 15" - 14.3 x 13.1 x 8.2(in)
19.5" - 19.3 x 13.3 x 8.2(in)
TOUCH: 10-point multi touch projected capacitive touch
DIMENSIONS: 15" - 1024 x 768
19.5" - 1600 x 90015" - 1024 x 768
WEIGHT: 15" - Net = 11.6 / Packing = 18
19.5" - Net = 19.8 / Packing = 23
MOUNTING: VESA-Compatible, 75 x 75(mm), 100 x 100(mm)
